   Standard solar system

     Separate pressurized solar system

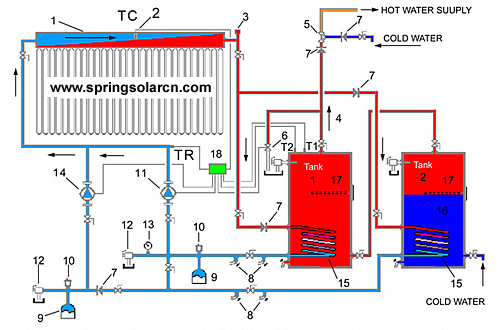

Separate pressurized solar system(Double-function model)
1. Collector
2. Collector Sensor
3. Manual Air Valve
4. Hot Water to Taps
5. Tempering Valve
6. Collector Return
7. Check Valve
9. Expansion kits
10. Air Scoop & Air Vent
11. Circulating Pump With Flanges Or Couplings
12. Pressure Relief Valve
13. Pressure Gauge
14. Collector Supply
15. Heat Exchange Coil
16. Solar Hot Water Tank
17. Immersion Heater
18. SPC-2 Controller

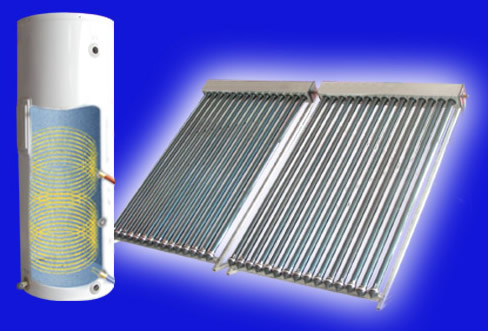

Product examples

Product description

flexible assembly,combined with building in perfect.solar collector composed of vacuum tubes,which is good in pressure bearing,high efficiency and sanitation. Tank can bear 2Mpa pressure.All the system with close circulation desgin.
And with electric back up inside for no enough sun shine.Even if in cloudy or raining day,you can enjoy hot water.
Separate pressurized solar water heater takes advantage of high absorptance and low emittance of vacuum tubes and converts absorbed radiation into heat energy and sends it rapidly to collector by heat pipe conductor.It can work efficiently in four seasons.


Product Model

Cubage
of
water
tank
(L)
Solar collector(tube)
Water
temperature
()
Max.
Pressure
(Mpa)
Electric
Heating
Power
(Kw)
Installation style of water tank
Ø581800
130-1.8/Ø58
150
15
40-90
0.6
23
Erect
130-1.8/Ø58
200
20
40-90
0.6
23
Erect
130-1.8/Ø58
300
30
40-90
0.6
23
Erect

Separated pressurized solar collector


Separated Pressurized Solar Collector (small group)
fron side
back side

Separated Pressurized Solar Collector ( big group)
fron side
back side

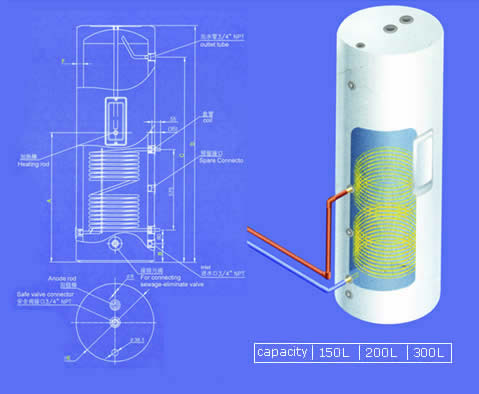

Double-function Pressurized Tank

Pressurized Tank

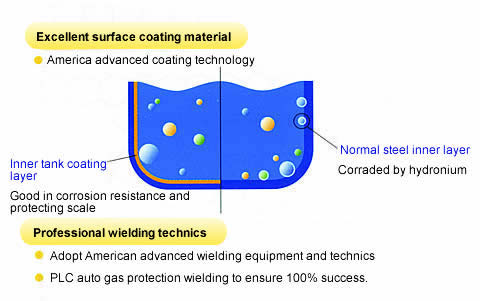

With 3 layers, stronger in bearing pressure
Inner tank adopts imported porcelain enamel material. It composes of three layers. That's non-metal inner layer, mixed layer and alloy steel layer. It's good in intension, high pressure resistance, corrosion resistance and heat and cold compact resistance.
Non-metal inner layer is with smooth surface. Non-metal film was coated on inner layer and integrated with inner layer after baking under 870 degree high temperature. It can be expanded with inner layer together freely and with big magnesium rod inside for protecting tank free of scale.
In complying with American pressure bearing standard 2MPa. ,which is 67% higher compared with our domestic standard. It's also with UL approval and with long life in 100,000 times. Each inner tank has to be tested under 21KG/CM2.



Project Of Separate Pressurized Solar System

roof
wall
